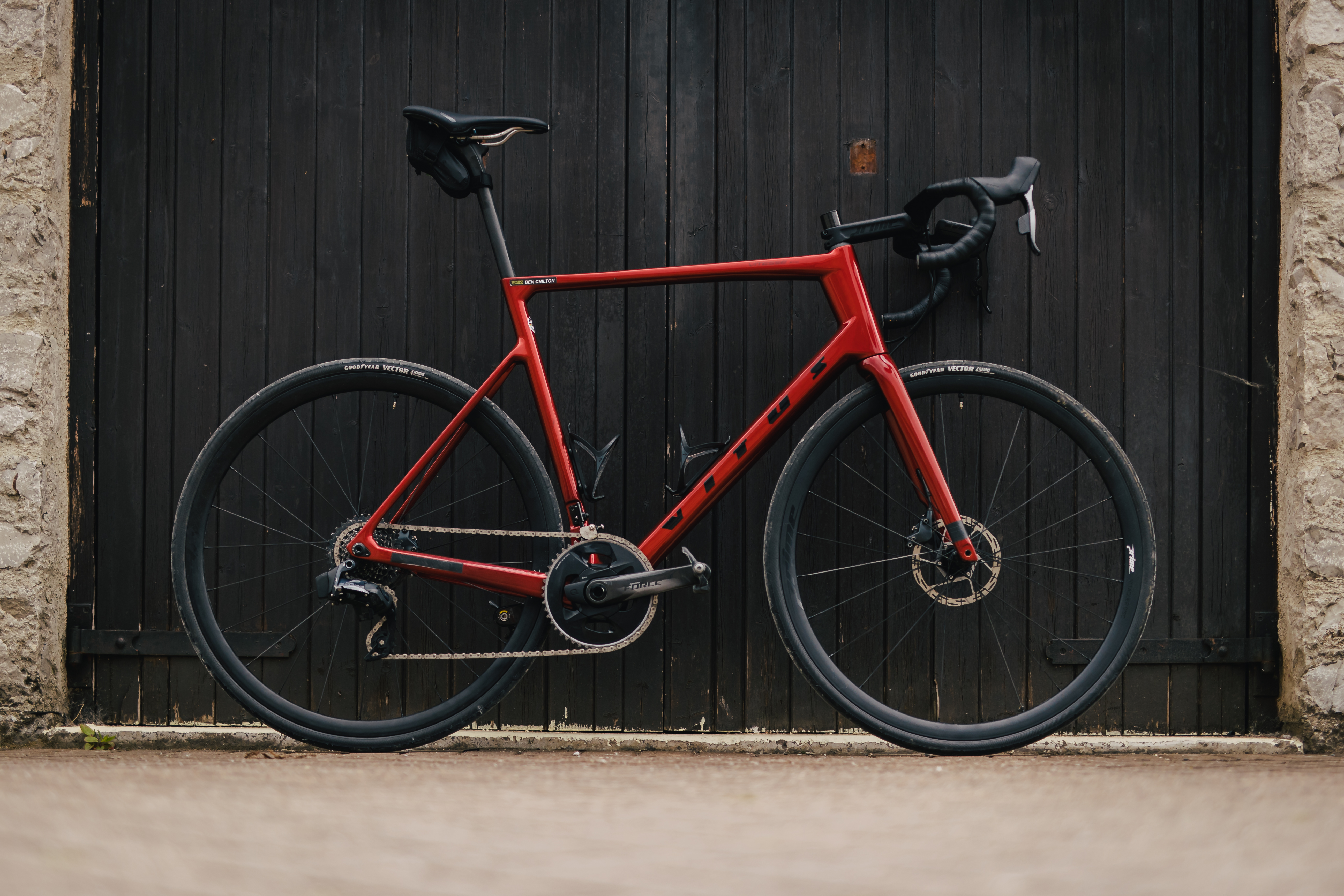

The Vitus Vitesse EVO, with SRAMs latest RIVAL AXS wireless electronic components, is a lightweight racing road bike. But this isn’t just a bike for the rising road, because what goes up must come down. Sharp on the climbs, but also agile on descents and capable of holding speed on the flat. To be a great all-round road bike, to a win a Grand Tour even, it has to perform everywhere.
The Vitesse has been on a redesign journey, and this new EVO features our latest one-piece carbon frame. Not only does it look clean (and fast!), the seamless design has no joins and there is no extra material being used to bond the frame together, keeping weight down. So you will still get the goosebumps of excitement when you feel it for the first time. “Phwoar! That’s light”.
And then you’ll start rolling and realise that there is so much more going on here to benefit your riding. The geometry is optimised, giving you control through turns whilst also being responsive to bursts of acceleration or steeper ramps. Stiffness is engineered into the frame where you need it most, so precious energy won’t be wasted - something we all need on those long, hilly days. And the modern frame clearance enables space for a bigger volume tyre as well, smoothing out those real world road surfaces.
The Vitesse EVO is a masterful climber. When you dream of dancing on the pedals, floating up legendary climbs and scorching personal bests, this is the bike you do it on. And when you roll over the top and hit the descent, there’s no teetering. No indecision, just pure control. A bike that lets you relax and carve the perfect line.
- Race-Fit geometry
- SL UD Carbon aero frame and fork with integrated seat clamp
- SRAM Rival AXS HRD groupset
- Prime Attaquer V2 Disc Road wheelset
- Michelin Power Cup Classic 700x25c tubeless ready tyres
- Lightweight Prime finishing kit
-
ROAD CC - Vitus Vitesse EVO RIVAL eTAP REVIEW
The Vitesse EVO eTap AXS Rival is an absolute belter of a bike! Vitus says the new frame is stiffer yet lighter, and the geometry puts you in the right position to ride fast and hard – whether you're a racer or just like to pelt around the lanes. A full wireless eTap groupset at this price is hugely impressive, too.
Read more...
Specifications
FRAMEVitesse EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch |
REAR HUB Prime SR1 142 x 12mm, Centre Lock, 36T Ratchet System, XD-R Freehub |
FORKSVitesse EVO Carbon SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset |
WHEELSETPrime Attaquer V2 Aluminium Clincher Disc Wheelset
700c, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, XD-R Freehub |
CHAINSETSRAM Rival D1 DUB 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm |
FRONT TYREMichelin Power Cup Classic TS TLR 700c x 25c, Tubeless Ready |
BOTTOM BRACKETSRAM DUB BB386 DUB for BB386EVO |
REAR TYREMichelin Power Cup Classic TS TLR 700c x 25c, Tubeless Ready |
FRONT DERAILLEURSRAM Rival AXS 2 x 12 Speed, Braze-On |
BRAKESSRAM Rival AXS D1 Disc Hydraulic Disc, Flat Mount |
REAR DERAILLEURSRAM Rival AXS 12 Speed, Short Cage |
BRAKE ROTORSSRAM Paceline Front:160mm, Rear:140mm |
FRONT SHIFTERSRAM Rival AXS 2 x 12 Speed |
HANDLEBARSPrime Primavera Carbon Aero
UD Carbon, Rise: 78mm, XS:380mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm |
REAR SHIFTERSRAM Rival AXS
12 Speed |
STEMPrime Doyenne Lightweight Aluminium
Bar Bore 31.8mm, +/- 5 degrees, XS:90mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm |
CASSETTESRAM XG 1250 10-36T, 12 Speed |
HEADSETACROS Aix-Low R3
Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40 |
CHAINSRAM Rival D1
12-Speed |
GRIPSVitus Super Grip
Anti Slip |
FRONT RIMPrime Attaquer V2
Aluminium, Tubeless Ready, Disc Brake, Rim Depth: 30mm, Inner Rim Width: 19mm, Outer Rim Width: 22mm |
SADDLEVitus Race Performance
CRN-Ti Rail, Pressure Relief Channel |
REAR RIMPrime Attaquer V2
Aluminium, Tubeless Ready, Disc Brake, Rim Depth: 30mm, Inner Rim Width: 19mm, Outer Rim Width: 22mm |
SEATPOSTPrime Primavera Carbon
27.2mm, 10mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm |
FRONT HUBPrime SR1
100 x 12mm, Centre Lock |
SEATCLAMPVitesse EVO Integrated
Internal Wedge System |
-
ONE PIECE MONOCOQUE FRAME
A true one piece monocoque frame manufactured as a single piece of super light UD carbon. No joins, so greater strength and lighter weight.
-
DUAL FORK DESIGN
Frame size specific fork geometry maintaining fit and handling characteristics across the full size curve.
-
IMPROVED TYRE CLEARANCE
The new Vitesse EVO frame now has 30c tyre clearance across all frame sizes and even up to 32c depending on the rim/tyre combination.
Geometry & Sizing
Model / Size | XS | S | M | L | XL | XXL |
(A) Seat Tube - CT | 470 | 490 | 510 | 530 | 550 | 570 |
(B) Seat Tube - CC | 450 | 470 | 490 | 510 | 530 | 550 |
(C) Virtual TT | 523.9 | 537.1 | 550.9 | 565.6 | 577.7 | 587.7 |
(D) Front Centre | 583 | 592 | 591 | 599.9 | 608 | 618.2 |
(E) Wheelbase | 983 | 992 | 991 | 1000.4 | 1008.5 | 1018.8 |
(F) Headtube | 104.5 | 127.3 | 145 | 162.7 | 179.5 | 196.1 |
(G) Fork Rake | 51 | 51 | 45 | 45 | 45 | 45 |
(H) Fork Length | 370 | 370 | 370 | 370 | 370 | 370 |
(I) HT Angle | 70.9 | 71.6 | 72.4 | 72.9 | 73.2 | 73.5 |
(J) ST Angle | 73.6 | 73.5 | 73.4 | 73.3 | 73.2 | 73.5 |
(K) Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
(L) BB Drop | 70 | 69 | 69 | 68 | 68 | 68 |
Crank length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
Max Tyre Size | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c |
(M) Stack | 502.9 | 524 | 547 | 565 | 582 | 599 |
(N) Reach | 375.9 | 381 | 387 | 396 | 402 | 410 |
Stand Over Height | 754.39 | 775.37 | 796.27 | 815.7 | 833.64 | 852.12 |
Stem length | 90 | 100 | 110 | 110 | 120 | 120 |
Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
Height | 160 - 165 | 165 - 170 | 170 - 177 | 176 - 186 | 186 - 193 | 193 - 200 |
Inside Leg | 68 - 74 | 74 - 76 | 76 - 79 | 79 - 84 | 84 - 87 | 87 - 93 |
Bottom Bracket | BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
Headset | Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Seat Post | 27.2 x 300mm | 27.2 x 300mm | 27.2 x 350mm | 27.2 x 350mm | 27.2 x 400mm | 27.2 x 400mm |
Help
- FAQs
- Tech Docs
- What are the Torque settings on the Vitesse EVO?
- You can find the tech documents for our Vitus Vitesse EVO here: Vitesse EVO Tech Documents
- What gear hanger do I need for my Vitesse EVO?
- You require Vitus Hanger #22 you can buy this from one of our retail partners below;
Wiggle: Vitus Hanger 22
Chain Reaction Cycles: Vitus Hanger 22 - Where can I buy Vitus Bikes?
- You can buy Vitus bikes directly through our exclusive retailers Wiggle and Chain Reaction Cycles
- Do your bikes come with Warranty?
- We offer a 5-year warranty on all our frames. On top of that we also offer an extended 2-year warranty on all components excluding wear and tear items such as bearings, brake pads, chains & cassettes etc. Our Warranty policy applies to the original owner and processed by our exclusive retail partners.To see their warranty process check: CRC & Wiggle
