Vitus Energie EVO CRS Cyclocross Bike Force

Vitus Energie EVO CRS Cyclocross Bike Force - £2,499.99

All new World Cup ready cyclocross race bike

An evolution. The new Vitus Energie EVO carbon features a ground up rethink on what's required from a World Cup level race bike. Refined Race-Fit geometry including a longer top tube and shorter stem giving the perfect balance of fit and control, whatever the conditions. Anatomically contoured tube profiles for carrying, and a refined carbon layup result in Vitus' lightest and stiffest CX frameset ever. Build in the class-leading mud clearance and modern look, and this bike just wants to go fast.

The Energie EVO CRS is built with a race focus. SRAM's proven 1X FORCE drivetrain provides the basis for a superbly equipped bike. The 1 x11 speed gearing gives a big gear range whilst adding simplicity, reliability and low weight, with features like carbon crank arms. Perfect for taming technical courses. SRAM's FORCE 1 rear derailleur features it's proven clutch system, keeping the chain firmly in place, whatever the conditions. Hydraulic disc brakes give you total control.

The versatility of a tubeless ready wheelset from the Prime Baroudeur aluminium disc wheels, fitted with 700c x 33 race ready tyres. Prime's Doyenne handlebar and superlight Doyenne stem add a touch of class. Supplied with a removable front derailleur mount, and a Vitus 1X chainguide.

  • Race-Fit geometry
  • SL UD Carbon frame and fork
  • Huge mud clearance
  • SRAM FORCE 1x11 groupset
  • Lightweight Prime wheels
  • Race ready 33c tubeless tyres

Features:

EVO Carbon Platform

Pro level race ready performance

Frame Material

SL UD Carbon

Wheel Size

700c

Available Size

XS, S, M, L, XL

Colour

Blue Chameleon

Weight:

Medium: 8.1kg

£2,499.99

Shop with Preferred Partner
  • Road.CC - First Ride Review: Vitus Energie EVO CRS

    "With loads of feedback from the frameset and the position that the overall geometry put me in, I could easily guide the Vitus around all kinds of obstacles. The fact that I could pre-empt where the front end would head allowed me to really keep the power on." - Stu Kerton, Road.CC

    Read more...
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force
Vitus Energie EVO CRS Cyclocross Bike Force

Specifications

FRAMEEnergie EVO Carbon

SL UD Carbon, UCI Approved, Internal Cable Routing, Removeable Seat-Stay Bridge, Removeable Front Deraileur Mount, Integrated Seat Clamp, Integrated Mudguard Mounts, 12mm x 142mm axle

REAR HUB Prime Baroudeur

24 Hole, 12 x 142mm Thru Axle, Centrelock

FORKSEnergie EVO Carbon

SL UD Carbon, Tpered Steerer, 100 x 12mm, Integrated Mudguard Mounts.

SPOKESN/A

N/A

CHAINSETSRAM FORCE 1 Carbon

X-SYNC 40T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm

FRONT TYREVee XCX

700c x 33mm, Tubeless Ready

BOTTOM BRACKETTRiPEAK 386-24

BB 386EVO for 24mm axle

REAR TYREVee XCX

700c x 33mm, Tubeless Ready

FRONT DERAILLEURN/A

N/A

BRAKESSRAM FORCE HRD

Hydraulic Disc

REAR DERAILLEURSRAM FORCE 1

Long Cage

BRAKE ROTORSSRAM Centreline

Front:160mm, Rear:160mm

FRONT SHIFTERN/A

N/A

HANDLEBARSPrime Doyenne

6061 Aluminium, 78mm Reach, 125mm Drop, 4 Degree Flare, XS:380mm S:400mm M:420mm L:420mm XL:440mm

REAR SHIFTERSRAM FORCE 1 HRD

11 Speed

STEMPrime Doyenne Lightweight

6061 Aluminium, bar bore 31.8mm, +/- 5 degrees, XS:70mm S:80mm M:90mm L:90mm XL:100mm

CASSETTESRAM PG-1170

10-32T

HEADSETACROS Aix 322 R3

Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 4

CHAINKMC X11

11 Speed

GRIPSVITUS SuperGrip

Anti Slip

FRONT RIMPrime Baroudeur

700c, 24 Hole

SADDLEVITUS Race Performance

CRN-Ti Rail, Pressure Relief Channel

REAR RIMPrime Baroudeur

700c, 24 Hole

SEATPOSTVITUS 6061 Aluminium

27.2mm x 350mm, 15mm Offset

FRONT HUBPrime Baroudeur

24 Hole, 12 x 100mm Thru Axle, Centrelock

SEATCLAMPEnergie evo Integrated

Internal Wedge System

  • One Piece Monocoque Frame

    A true one piece monocoque frame manufactured as a single piece of super light UD carbon. No joins, so greater strength and lighter weight.

  • Race Fit Geometry

    Race-Fit geometry is reserved for Vitus' performance led race bikes. The aim is to put the rider in the most advantageous posistion possible, maximising power output and aerodymaic positioning, whilst maintaining comfort.

  • Class Leading Mud Clearance

    We have optimised our frame design to build in as much mud and tyre clearance as possible within UCI regulations. Our aim is simple...to keep you riding longer than any other bike brand.

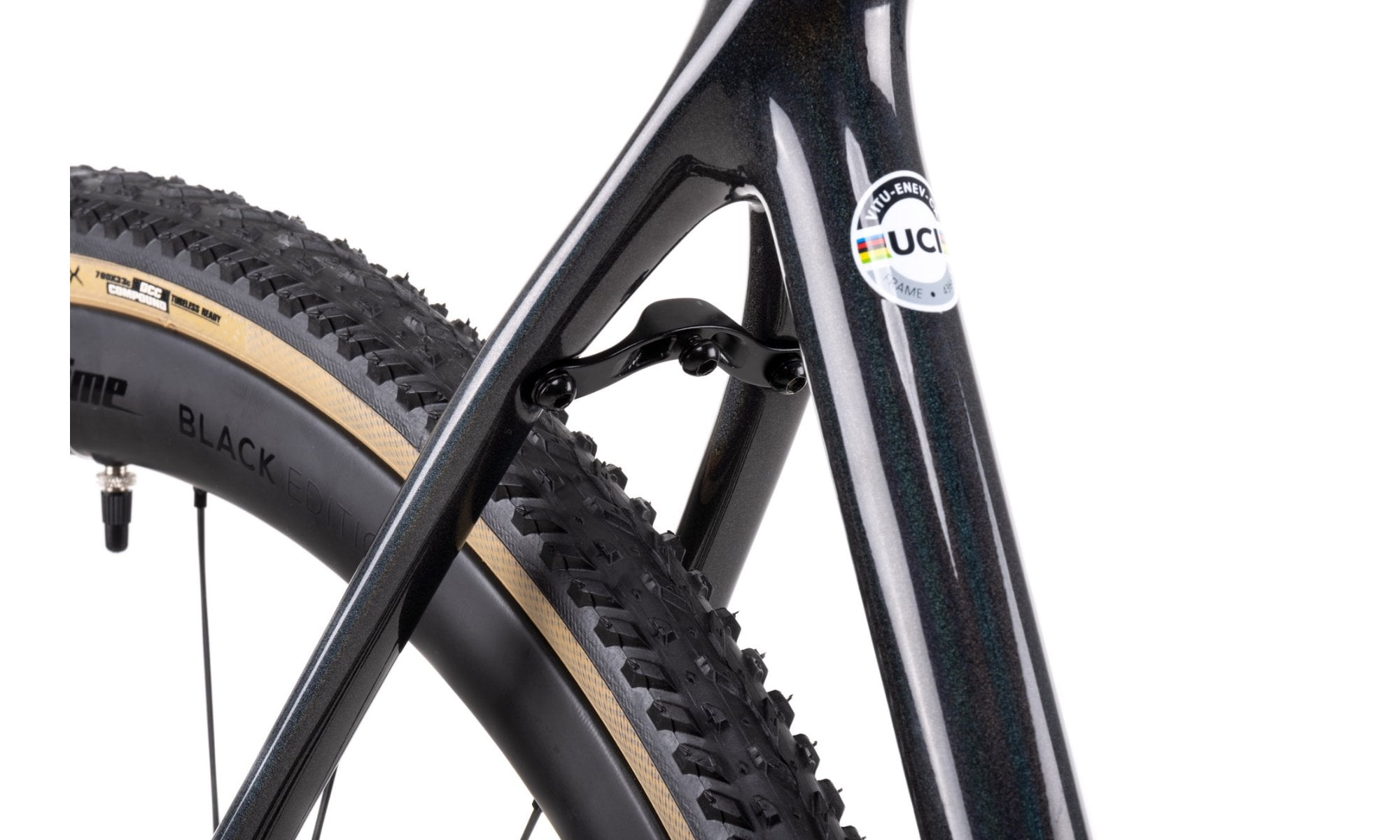

  • Mud Guard Mounts

    By it's nature a cyclocross bike is a versatile machine. The Energie EVO features some discreet removable built in mud-guard mounts. If you want to stay dry, we've got you covered

Geometry & Sizing

Measurement instructions for Vitus Energie EVO range



Frame Size XS S M L XL
Rec. Rider Height (Imperial) 5' 1" - 5' 5" 5' 5" - 5' 9" 5' 9" - 5' 11" 5' 11" - 6' 3" 6' 3" - 6' 7"
Rec. Rider Height (Metric) 155 - 165cm 165 - 176cm 175 - 182cm 182 - 190cm 190 - 200cm
Rec. Inside Leg (Imperial) 27" - 29" 29" - 31" 31" - 33" 33" - 35" 35" - 37"
Rec. Inside Leg (Metric) 68 - 76cm 75 - 79cm 80 - 84cm 83 - 88cm 87 - 94cm
(A) Seat Tube - CT 470 490 510 530 550
(B) Seat Tube - CC 454 474 494 514 534
(C) Virtual TT 517.8 539.3 560.1 581.9 601.8
(D) Front Centre 591 603.03 613.97 626.03 637.41
(E) Wheelbase 1007 1019 1030 1042 1053
(F) Headtube 101.2 120 142 165.93 183.23
(G) Fork Rake 45 45 45 45 45
(H) Fork Length 400 400 400 400 400
(I) HT Angle 70.3 70.8 71.5 72.1 72.5
(J) ST Angle 74.8 74.2 73.8 73.4 73
(K) Chainstay 425 425 425 425 425
(L) BB Drop 66 66 66 66 66
Crank Length 165 170 172.5 172.5 175
Max Tyre Size 700 x 45c 700 x 45c 700 x 45c 700 x 45c 700 x 45c
(M) Stack  523 542 565 590 611
(N) Reach 376 386 396 406 415
Stand Over Height 786.69 805.15 825.74 847.28 866.8
Stem length 80 90 90 100 110
Handlebar Width 400 400 420 420 440
Bottom Bracket BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
Headset Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Seat Post 350mm x 27.2mm 350mm x 27.2mm 350mm x 27.2mm 350mm x 27.2mm 350mm x 27.2mm

Help

  • FAQs
  • Tech Docs
  • What are the Torque settings on the Energie EVO?
  • You can find the tech documents for our Vitus Energie EVO here: Energie EVO Tech Documents
  • What gear hanger do I need for my Energie EVO?
  • You require Vitus Hanger #22 you can buy this from one of our retail partners below;
    Wiggle: Vitus Hanger 22
    Chain Reaction Cycles: Vitus Hanger 22
  • Where can I buy Vitus Bikes?
  • You can buy Vitus bikes directly through our exclusive retailers Wiggle and Chain Reaction Cycles
  • Do your bikes come with Warranty?
  • We offer a 5-year warranty on all our frames. On top of that we also offer an extended 2-year warranty on all components excluding wear and tear items such as bearings, brake pads, chains & cassettes etc. Our Warranty policy applies to the original owner and processed by our exclusive retail partners.To see their warranty process check: CRC & Wiggle
