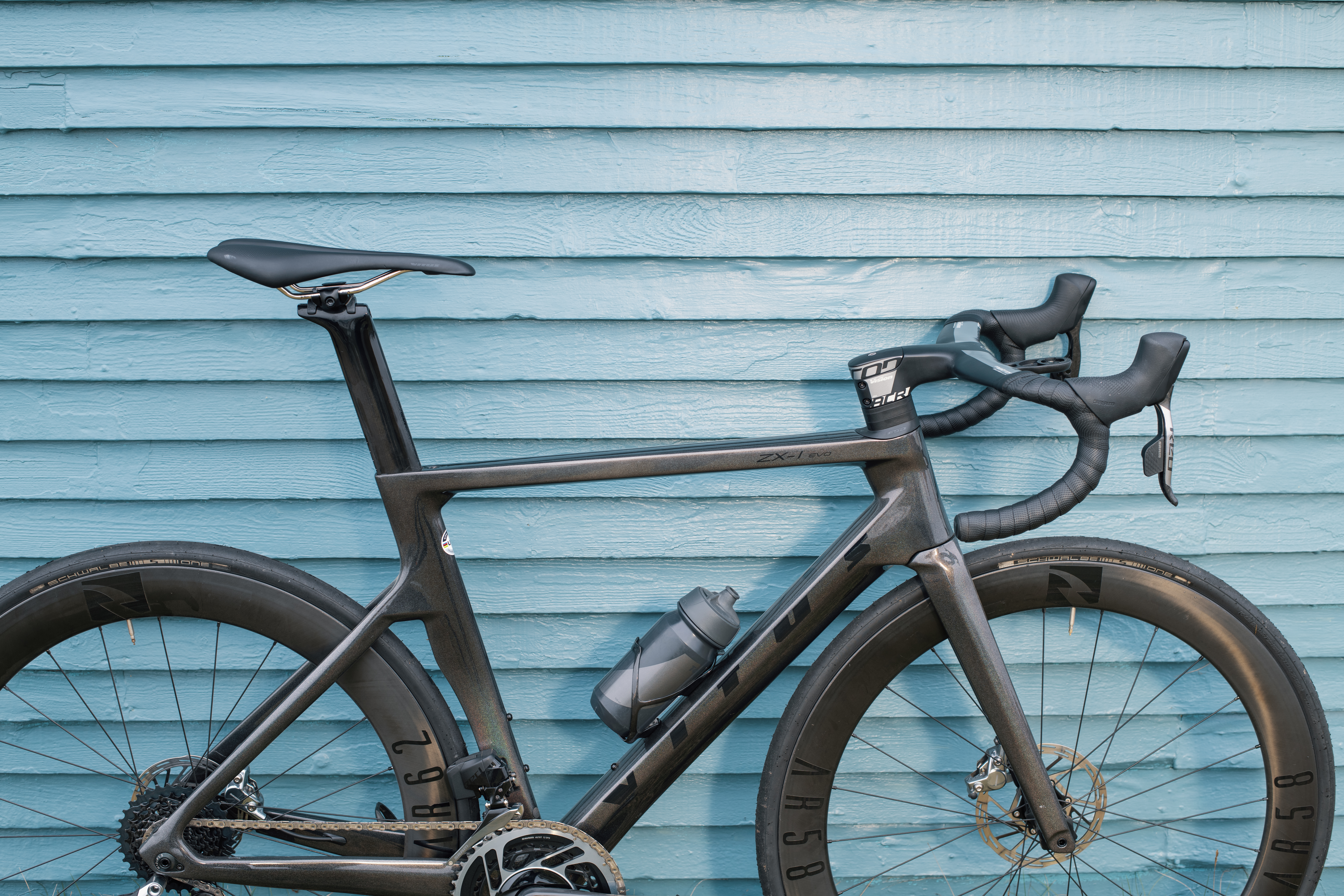

Vitus ZX-1 EVO Force AXS Road Bike

Vitus ZX-1 EVO Force AXS Road Bike - £4,799.99

The latest Vitus ZX-1 has been remastered, reimagined and reengineered. Enter, the EVO. Lighter, stiffer and faster. Stripped right back to the drawing board for a ground-up overhaul.

Yes, we’ve done the testing and know that the EVO exhibits up to 45% less drag than the previous model. But that means nothing until you unleash it outside and feel it for yourself. In the world of aero bikes, amongst all the jargon and data, it’s easy to lose sight of what really matters. That to feel fast is to be fast, and you can’t feel fast in a wind tunnel. The pleasure of speed only exists in the real world. Out there on the road. The sensation of putting power through your pedals and feeling the bike surge underneath you. And the faster you go, the easier it becomes. That’s where the ZX-1 EVO excels. That’s the bike working with you as the road snakes and the wind changes. That’s aero.

The ZX-1 EVO doesn’t neglect everything for the sake of speed, since an uncomfortable rider cannot be fast and efficient. At least, not for long. Thanks to the one-piece carbon monocoque frame there are no points of weakness, no joints, so it is specifically engineered to be stiff where required and deliver comfort elsewhere, reducing harshness from the road for a more soothing ride feel. Reassuringly, there are no compromises on performance with the build. You’re getting SRAMs performance wireless FORCE AXS groupset, deep-section aero Reynolds carbon wheels and fully internal cable routing so nothing is left out in the wind. The result? A bike with a stunningly clean aesthetic that carves through the air with outstanding efficiency.

The performance geometry slots the rider into a naturally aerodynamic position, so whether racing flat-out, sprinting for road signs or charging on the front of the chaingang, the EVO gathers momentum quickly and holds speed with ease. We’ve made this bike fast. We know it rides fast. The rest is up to you.

  • Race-Fit geometry
  • SL UD Carbon aero frame and fork with integrated seat clamp
  • Full internal cable routing
  • SRAM Force AXS HRD groupset
  • Reynolds AR58/62 DB Carbon wheelset
  • Vision Metron 5D ACR Carbon cockpit

Features:

EVO Carbon Platform

Aero Race Performance

Frame Material

SL UD Carbon

Wheel Size

700c

Available Size

XS, S, M, L, XL, XXL

Colour

Midnight Blue

Weight:

Medium: 8.0kg

£4,799.99

  • CYCLING WEEKLY - VITUS ZX-1 EVO CRS eTAP FORCE REVIEW

    Vitus ZX-1 EVO is hugely fast and fun to ride. It holds its speed well and the overbuilt chassis is super stiff and really rewards a stinging effort.

    Read more...
Where can I buy Vitus bikes?

You can buy Vitus bikes directly through our exclusive retailers:

Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike
Vitus ZX-1 EVO Force AXS Road Bike

Specifications

FRAMEZX-1 EVO Carbon

SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

REAR HUB Reynolds GW TR3

142 x 12mm, Centre Lock, XD-R Freehub

FORKSZX-1 EVO Carbon

SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset

WHEELSETReynolds AR58/AR62 DB Carbon Carbon Clincher Wheelset

700c, Tubeless Ready, 24 Hole, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, XD-R Freehub

CHAINSETSRAM Force D1 DUB

48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm

FRONT TYREMichelin Power Cup Classic TS TLR

700c x 25c, Tubeless Ready

BOTTOM BRACKETSRAM DUB BB386

DUB for BB386EVO

REAR TYREMichelin Power Cup Classic TS TLR

700c x 25c, Tubeless Ready

FRONT DERAILLEURSRAM Force AXS

2 x 12 Speed, Braze-On

BRAKESSRAM Force eTap AXS D1 Disc

Hydraulic Disc, Flat Mount

REAR DERAILLEURSRAM Force AXS

12 Speed, Short Cage

BRAKE ROTORSSRAM Paceline

Front:160mm, Rear:140mm

FRONT SHIFTERSRAM Force AXS

2 x 12 Speed

HANDLEBARSVision Metron 5D ACR Integrated Bar/Stem Combo

UD Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm

REAR SHIFTERSRAM Force AXS

12 Speed

STEMVision Metron 5D Acr Integrated Bar/Stem Combo

125mm drop, - 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm

CASSETTESRAM XG 1270 D1

10-33T, 12 Speed

HEADSETFSA/Vitus ACR

Sealed Bearings, No. 84 (compatible with No. 55), ZS52 / 40 Top & Bottom

CHAINSRAM Force D1

12 Speed

GRIPSVitus Super Grip

Anti Slip

FRONT RIMReynolds AR58

Carbon, TubelessReady, Disc Brake, Rim Depth: 58mm, Inner Rim Width: 19mm, Outer Rim Width: 28mm

SADDLEVitus Race Performance

CRN-Ti Rail, Pressure Relief Channel

REAR RIMReynolds AR62

Carbon, TubelessReady, Disc Brake, Rim Depth: 62mm, Inner Rim Width: 21mm, Outer Rim Width: 30mm

SEATPOSTZX-1 EVO Aero

XS/S: 300mm M/L/XL/XXL: 350mm, +20mm/-2mm Offset

FRONT HUBReynolds GW TR3

100 x 12mm, Centre Lock

SEATCLAMPZX-1 EVO Integrated

Internal Wedge System

  • Full Monocoque Frame

    The All New ZX-1 EVO features a true monocoque frame, manufactured as a single piece. Comfort and performance go hand-in-hand, while eliminating any joins creates greater strength and result in a light weight, eye catching frame. Less aerodynamic drag, for ultimate speed when out on the open road.

  • Dual Fork Design

    We have introduced frame size specific fork geometry maintaining fit and handling characteristics across the full size curve. By adjusting the rake on the smaller sizes this ensures handling isn't compromised, whilst at the same time giving riders the same toe overlap versus the bigger frame sizes.

  • Tyre clearance

    Performance shouldn't come about at the expense of practicality, that's why the ZX-1 EVO brings 700c x 30 tyre clearance across all sizes. For added comfort and control, without compromising on speed.

Geometry & Sizing

Measurement instructions for Vitus Sommet range



Model / Size XS S M L XL XXL
(A) Seat Tube - CT 470 490 510 530 550 570
(B) Seat Tube - CC 450 470 490 510 530 550
(C) Virtual TT 520 537 551 566 581 592
(D) Front Centre 579 590 591 599.9 611 623
(E) Wheelbase 979 990 991 1000.4 1012 1024
(F) Headtube 89.5 112.3 129.6 147.8 164.5 181
(G) Fork Rake 51 51 45 45 45 45
(H) Fork Length 370 370 370 370 370 370
(I) HT Angle 70.9 71.6 72.4 72.9 73.2 73.5
(J) ST Angle 73.6 73.5 73.4 73.3 73.2 73.5
(K) Chainstay 410 410 410 410 410 410
(L) BB Drop 70 69 69 68 68 68
Crank length N/A N/A N/A N/A N/A N/A
Max Tyre Size 700 x 30c 700 x 30c 700 x 30c 700 x 30c 700 x 30c 700 x 30c
(M) Stack  500 522 543 562 578 595
(N) Reach 372 381 387 396 406 416
Stand Over Height 752.95 774.37 794.28 815.7 831.65 850.13
Stem length N/A N/A N/A N/A N/A N/A
Handlebar Width N/A N/A N/A N/A N/A N/A
Height  160 - 165 165 - 170 170 - 177 176 - 186 186 - 193 193 - 200
Inside Leg 68 - 74 74 - 76 76 - 79 79 - 84 84 - 87 87 - 93
Bottom Bracket N/A N/A N/A N/A N/A N/A
Headset N/A N/A N/A N/A N/A N/A
Seat Post N/A N/A N/A N/A N/A N/A
