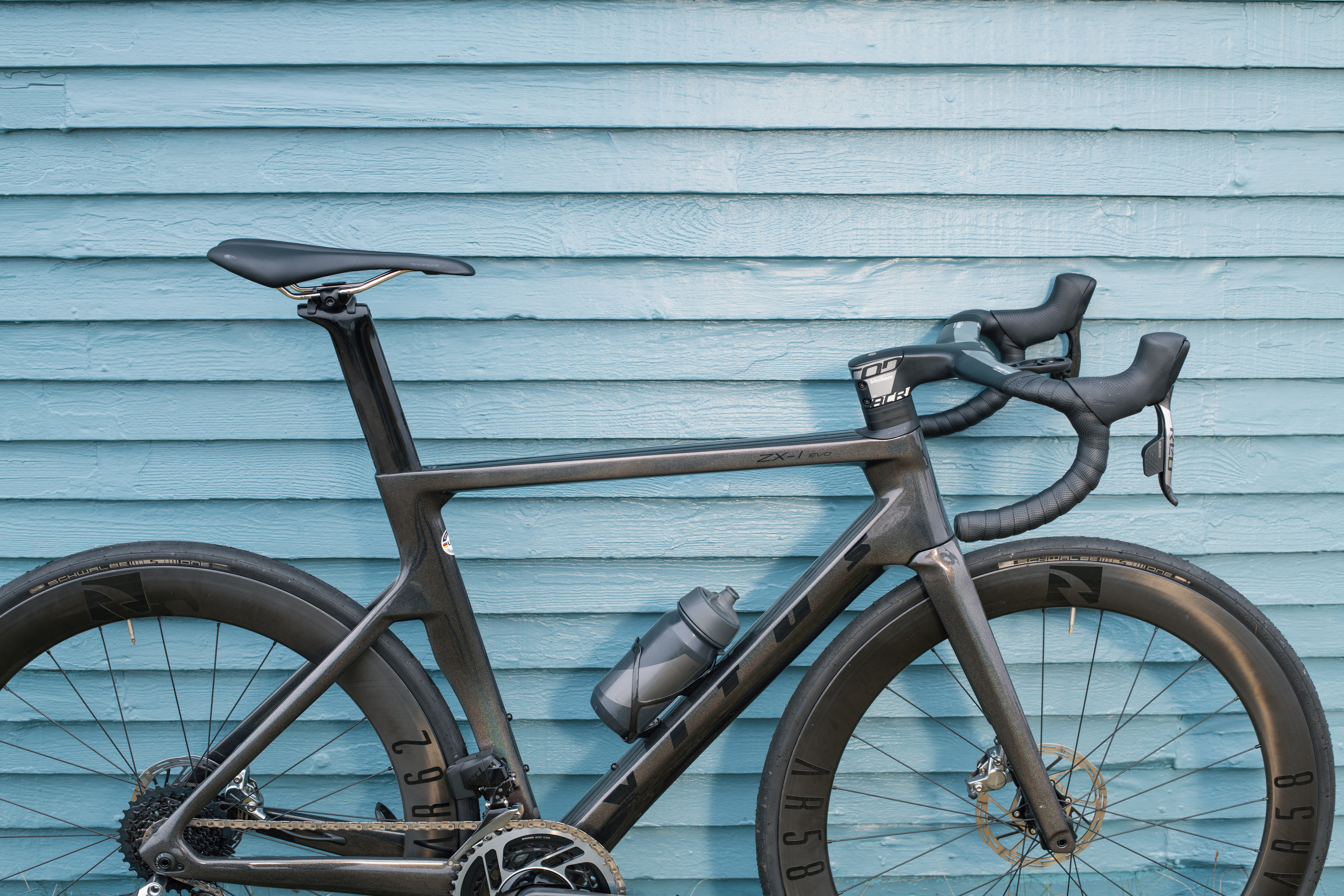

The latest Vitus ZX-1 has been remastered, reimagined and reengineered. Enter, the EVO. Lighter, stiffer and faster. Stripped right back to the drawing board for a ground-up overhaul.
Yes, we’ve done the testing and know that the EVO exhibits up to 45% less drag than the previous model. But that means nothing until you unleash it outside and feel it for yourself. In the world of aero bikes, amongst all the jargon and data, it’s easy to lose sight of what really matters. That to feel fast is to be fast, and you can’t feel fast in a wind tunnel. The pleasure of speed only exists in the real world. Out there on the road. The sensation of putting power through your pedals and feeling the bike surge underneath you. And the faster you go, the easier it becomes. That’s where the ZX-1 EVO excels. That’s the bike working with you as the road snakes and the wind changes. That’s aero.
The ZX-1 EVO doesn’t neglect everything for the sake of speed, since an uncomfortable rider cannot be fast and efficient. At least, not for long. Thanks to the one-piece carbon monocoque frame there are no points of weakness, no joints, so it is specifically engineered to be stiff where required and deliver comfort elsewhere, reducing harshness from the road for a more soothing ride feel. Reassuringly, there are no compromises on performance with the build. You’re getting SRAM’s latest wireless RIVAL eTap groupset, Prime carbon wheels and integrated carbon stem and handlebar to keep the front end sleek so nothing is left out in the wind. The result? A bike with a stunningly clean aesthetic that carves through the air with outstanding efficiency.
The performance geometry slots the rider into a naturally aerodynamic position, so whether racing flat-out, sprinting for road signs or charging on the front of the chaingang, the EVO gathers momentum quickly and holds speed with ease. We’ve made this bike fast. We know it rides fast. The rest is up to you.
- Race-Fit geometry
- SL UD Carbon aero frame and fork with integrated seat clamp
- Full internal cable routing
- SRAM Rival eTap AXS HRD groupset
- Prime Attaquer Disc Road wheelset
- Prime Primavera Carbon aero handlebar
Features:
EVO Carbon PlatformAero Race Performance |
Frame MaterialSL UD Carbon |
Wheel Size700c |
Available SizeXS, S, M, L, XL, XXL |
ColourGunmetal Grey |
Weight:Medium: 8kg |
£3,899.99
Specifications
FRAMEZX-1 EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch |
REAR HUB Prime RD010 142 x 12mm, Centre Lock, XD-R Freehub with Anti Bite Guard |
FORKSZX-1 EVO Carbon SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset |
WHEELSETPrime Attaquer Aluminium Clincher Disc Wheelset
700c, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, XD-R Freehub |
CHAINSETSRAM Rival D1 DUB 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm |
FRONT TYREMichelin Power Road TLR 700c x 25c, Tubeless Ready |
BOTTOM BRACKETSRAM DUB BB386 DUB for BB386EVO |
REAR TYREMichelin Power Road TLR 700c x 25c, Tubeless Ready |
FRONT DERAILLEURSRAM Rival eTap AXS 2x12 Speed, Braze-On |
BRAKESSRAM Rival eTap AXS D1 Disc Hydraulic Disc, Flat Mount |
REAR DERAILLEURSRAM Rival eTap AXS 12 Speed, Short Cage |
BRAKE ROTORSSRAM Paceline Front:160mm, Rear:140mm |
FRONT SHIFTERSRAM Rival eTap AXS 2x12 Speed |
HANDLEBARSPrime Primavera Carbon Aero
UD Carbon, Rise: 78mm, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm |
REAR SHIFTERSRAM Rival eTap AXS
12 Speed |
STEMFSA ST-OS-185 Integrated
Bar Bore 31.8mm, - 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm |
CASSETTESRAM XG 1290 D1 10-33T |
HEADSETFSA/Vitus ACR
Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover |
CHAINSRAM Rival D1
12-Speed |
GRIPSVitus Super Grip
Anti Slip |
FRONT RIMPrime Attaquer
Aluminium, Tubeless Ready, Disc Brake, Rim Depth: 30mm, Inner Rim Width: 19mm, Outer Rim Width: 22mm |
SADDLEVitus Race Performance
CRN-Ti Rail, Pressure Relief Channel |
REAR RIMPrime Attaquer
Aluminium, Tubeless Ready, Disc Brake, Rim Depth: 30mm, Inner Rim Width: 19mm, Outer Rim Width: 22mm |
SEATPOSTZX-1 EVO Aero
+20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm |
FRONT HUBPrime RD010
100 x 12mm, Centre Lock |
SEATCLAMPZX-1 EVO Integrated
Internal Wedge System |
-

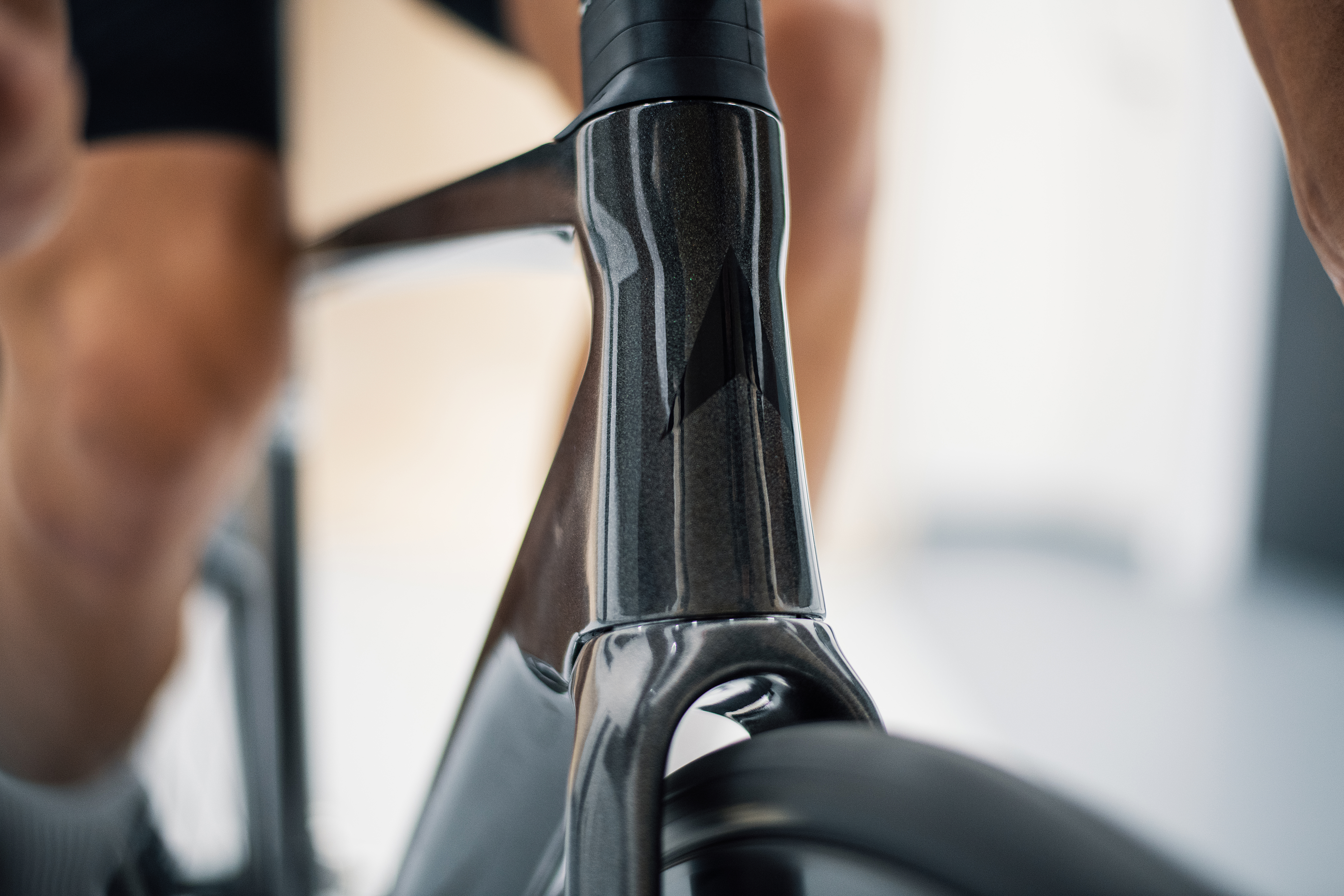

Full Monocoque Frame
The All New ZX-1 EVO features a true monocoque frame, manufactured as a single piece. Comfort and performance go hand-in-hand, while eliminating any joins creates greater strength and result in a light weight, eye catching frame. Less aerodynamic drag, for ultimate speed when out on the open road.
-
Dual Fork Design
We have introduced frame size specific fork geometry maintaining fit and handling characteristics across the full size curve. By adjusting the rake on the smaller sizes this ensures handling isn't compromised, whilst at the same time giving riders the same toe overlap versus the bigger frame sizes.
-
Tyre clearance
erformance shouldn't come about at the expense of practicality, that's why the ZX-1 EVO brings 700c x 30 tyre clearance across all sizes. For added comfort and control, without compromising on speed.
Geometry & Sizing
Model / Size | XS | S | M | L | XL | XXL |
(A) Seat Tube - CT | 470 | 490 | 510 | 530 | 550 | 570 |
(B) Seat Tube - CC | 450 | 470 | 490 | 510 | 530 | 550 |
(C) Virtual TT | 520 | 537 | 551 | 566 | 581 | 592 |
(D) Front Centre | 579 | 590 | 591 | 599.9 | 611 | 623 |
(E) Wheelbase | 979 | 990 | 991 | 1000.4 | 1012 | 1024 |
(F) Headtube | 89.5 | 112.3 | 129.6 | 147.8 | 164.5 | 181 |
(G) Fork Rake | 51 | 51 | 45 | 45 | 45 | 45 |
(H) Fork Length | 370 | 370 | 370 | 370 | 370 | 370 |
(I) HT Angle | 70.9 | 71.6 | 72.4 | 72.9 | 73.2 | 73.5 |
(J) ST Angle | 73.6 | 73.5 | 73.4 | 73.3 | 73.2 | 73.5 |
(K) Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
(L) BB Drop | 70 | 69 | 69 | 68 | 68 | 68 |
Crank length | N/A | N/A | N/A | N/A | N/A | N/A |
Max Tyre Size | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c |
(M) Stack | 500 | 522 | 543 | 562 | 578 | 595 |
(N) Reach | 372 | 381 | 387 | 396 | 406 | 416 |
Stand Over Height | 752.95 | 774.37 | 794.28 | 815.7 | 831.65 | 850.13 |
Stem length | N/A | N/A | N/A | N/A | N/A | N/A |
Handlebar Width | N/A | N/A | N/A | N/A | N/A | N/A |
Height | 160 - 165 | 165 - 170 | 170 - 177 | 176 - 186 | 186 - 193 | 193 - 200 |
Inside Leg | 68 - 74 | 74 - 76 | 76 - 79 | 79 - 84 | 84 - 87 | 87 - 93 |
Bottom Bracket | N/A | N/A | N/A | N/A | N/A | N/A |
Headset | N/A | N/A | N/A | N/A | N/A | N/A |
Seat Post | N/A | N/A | N/A | N/A | N/A | N/A |
