Vitus Vitesse EVO CRX eTap AXS Road Bike Red (2021) - £4,799.99

Name: Vitus Vitesse EVO CRX eTap AXS Road Bike Red (2021)
Brand: Vitesse EVO
SKU: 104684208
Price: 4799.99 GBP
Availability: OnlineOnly

Our all new high performance light weight race bike

An evolution. The new Vitus Vitesse EVO features a ground up rethink on what's required from an elite level lightweight race bike. Refined Race-Fit geometry including a longer top tube, lower front end and shorter chain stays gives the perfect balance of fit and control, whatever the race demands. A refined carbon layup result in Vitus' lightest and stiffest road frameset ever - 10% lighter and 34% stiffer than it's predecessor. Build in the increased tyre clearances and modern look, and this bike just wants to be ridden hard.

Fitted with SRAM's range topping RED eTap AXS HRD with wireless electronic shifting. This 12 speed groupset offers modern gearing ratio's, advanced chain management and easy personalisation via the app. Top technology in an efficent package.

The CRX eTap AXS is paired with Reynolds AR29 DB carbon wheels, featuring wide carbon rims, Sapim spokes and a lifetime Reynolds warranty. The wheels come tubeless ready, and fitted with Schwalbe's Pro ONE Performance TLE tyres. A set of Prime Primavera X-Light carbon handlebars and Doyenne Lightweight stem finish the package.

Race-Fit geometry
SL UD Carbon frame and fork with integrated seat clamp
SRAM FORCE eTap AXS HRD groupset
Reynolds AR29 DB Carbon wheelset
Schwalbe ONE Performance 700c x 25 tyres
Prime lightweight finishing kit

Features:

EVO Carbon Platform

Pro Level Race Ready Performance

Frame Material

SL UD Carbon

Wheel Size

700c

Available Size

XS, S, M, L, XL, XXL

Colour

Cosmic Black

Weight:

Medium: 7.4 kg

£4,799.99

Where can I buy Vitus bikes?

You can buy Vitus bikes directly through our exclusive retailers:

Specifications

FRAMEVitesse EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount	REAR HUB Reynolds 142 x 12mm Rear, Centre Lock, XD-R Freehub
FORKSVitesse EVO Carbon SL UD Carbon, UCI Approved, Tpered Steerer, 100 x 12mm, Flat Mount, Size Specific	SPOKESN/A N/A
CHAINSETSRAM RED D1 DUB 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm	FRONT TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard
BOTTOM BRACKETSRAM DUB 386 DUB For BB386EVO	REAR TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard
FRONT DERAILLEURSRAM RED eTap AXS N/A	BRAKESSRAM RED eTap AXS D1 Disc Hydraulic Disc, Flat Mount
REAR DERAILLEURSRAM RED eTap AXS 12 Speed, Short Cage,	BRAKE ROTORSSRAM Paceline Front:160mm, Rear:140mm
FRONT SHIFTERSRAM RED eTap AXS N/A	HANDLEBARSPrime Primavera X-Light Carbon US Carbon, 75mm Reach, 125mm Drop, XS:380mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm
REAR SHIFTERSRAM RED eTap AXS 12 Speed	STEMPrime Doyenne Lightweight Aluminium Bar Bore 31.8mm, +/- 5 degrees, XS:90mm S:100mm M:110mm L:110mm XL:120mm
CASSETTESRAM XG 1270 D1 10-33T	HEADSETACROS Aix-Low R3 Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
CHAINSRAM FORCE D1 12 Speed	GRIPSVITUS SuperGrip Anti Slip
FRONT RIMReynolds AR 29 Tubeless Ready, 24 Hole	SADDLEVITUS Race Performance CRN-Ti Rail, Pressure Relief Channel
REAR RIMReynolds AR 29 Tubeless Ready, 24 Hole	SEATPOSTPrime Primavera Carbon 27.2mm, 10mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
FRONT HUBReynolds 100 x 12mm Front, Centre Lock	SEATCLAMPVitesse EVO Integrated Internal Wedge System

ONE PIECE MONOCOQUE FRAME

A true one piece monocoque frame manufactured as a single piece of super light UD carbon. No joins, so greater strength and lighter weight.
RACE FIT GEOMETRY

Race-Fit geometry is reserved for Vitus' performance led race bikes. The aim is to put the rider in the most advantageous posistion possible, maximising power output and aerodymaic positioning, whilst maintaining comfort.
DUAL FORK DESIGN

Frame size specific fork geometry maintaining fit and handling characteristics across the full size curve

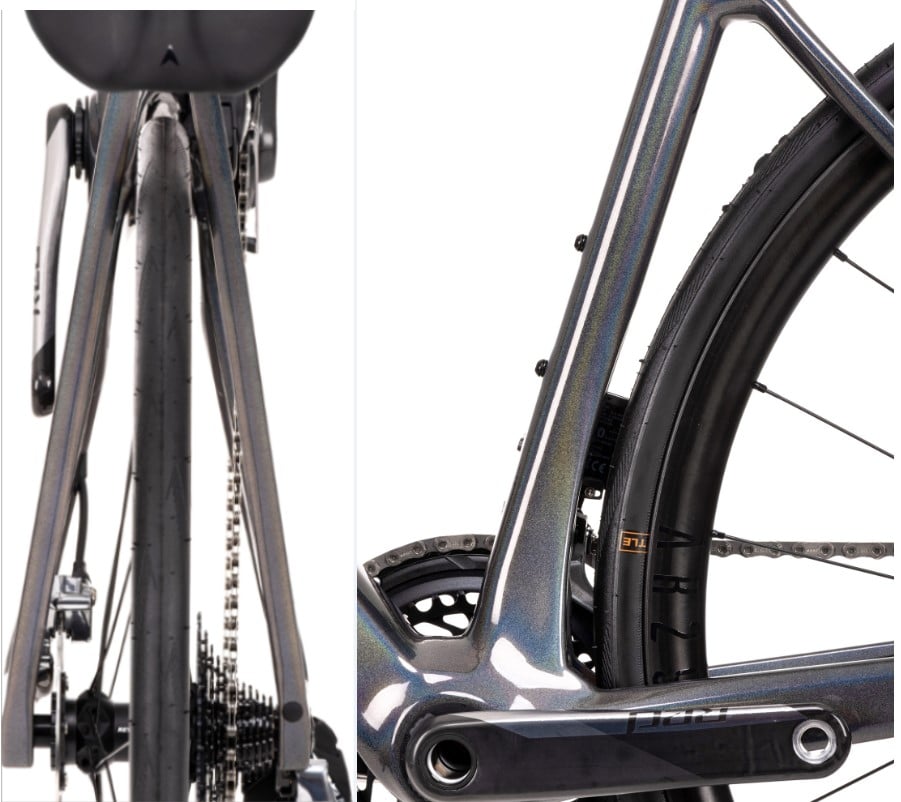

IMPROVED TYRE CLEARANCE

The new Vitesse EVO frame now has 30c tyre clearance across all frame sizes and even up to 32c depending on the rim/tyre combination.

Geometry & Sizing

Measurement instructions for Vitus Sommet range

Model / Size	XS	S	M	L	XL	XXL
(A) Seat Tube - CT	470	490	510	530	550	570
(B) Seat Tube - CC	450	470	490	510	530	550
(C) Virtual TT	523.9	537.1	550.9	565.6	577.7	587.7
(D) Front Centre	583	592	591	599.9	608	618.2
(E) Wheelbase	983	992	991	1000.4	1008.5	1018.8
(F) Headtube	104.5	127.3	145	162.7	179.5	196.1
(G) Fork Rake	51	51	45	45	45	45
(H) Fork Length	370	370	370	370	370	370
(I) HT Angle	70.9	71.6	72.4	72.9	73.2	73.5
(J) ST Angle	73.6	73.5	73.4	73.3	73.2	73.5
(K) Chainstay	410	410	410	410	410	410
(L) BB Drop	70	69	69	68	68	68
Crank length	165	170	172.5	172.5	175	175
Max Tyre Size	700 x 30c	700 x 30c	700 x 30c	700 x 30c	700 x 30c	700 x 30c
(M) Stack	502.9	524	547	565	582	599
(N) Reach	375.9	381	387	396	402	410
Stand Over Height	754.39	775.37	796.27	815.7	833.64	852.12
Stem length	90	100	110	110	120	120
Handlebar Width	380	400	420	420	440	440
Height	160 - 165	165 - 170	170 - 177	176 - 186	186 - 193	193 - 200
Inside Leg	68 - 74	74 - 76	76 - 79	79 - 84	84 - 87	87 - 93
Bottom Bracket	BB386 EVO 46mm ID x 86mm W	BB386 EVO 46mm ID x 86mm W	BB386 EVO 46mm ID x 86mm W	BB386 EVO 46mm ID x 86mm W	BB386 EVO 46mm ID x 86mm W	BB386 EVO 46mm ID x 86mm W
Headset	Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40	Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40	Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40	Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40	Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40	Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40
Seat Post	27.2 x 300mm	27.2 x 300mm	27.2 x 350mm	27.2 x 350mm	27.2 x 400mm	27.2 x 400mm

Help

FAQs
Tech Docs

What are the Torque settings on the Vitesse EVO?
You can find the tech documents for our Vitus Vitesse EVO here: Vitesse EVO Tech Documents
What gear hanger do I need for my Vitesse EVO?
You require Vitus Hanger #22 you can buy this from one of our retail partners below;
Wiggle: Vitus Hanger 22
Chain Reaction Cycles: Vitus Hanger 22
Where can I buy Vitus Bikes?
You can buy Vitus bikes directly through our exclusive retailers Wiggle and Chain Reaction Cycles
Do your bikes come with Warranty?
We offer a 5-year warranty on all our frames. On top of that we also offer an extended 2-year warranty on all components excluding wear and tear items such as bearings, brake pads, chains & cassettes etc. Our Warranty policy applies to the original owner and processed by our exclusive retail partners.To see their warranty process check: CRC & Wiggle
