The All New ZX-1 EVO
An evolution. For it's 20th birthday the ZX-1 has been given the 'EVO' treatment. A fresh aero design, optimised by aerodynamic specialists based at the famoust Silverstone race track has resulted in a frameset offering 18% less drag than the previous ZX-1. All new and much refined Race-Fit geometry including a longer top tube, lower front end and shorter chain stays gives the perfect balance of fit and control.
The ZX-1 EVO CRS come fitted with Shimano's class leading Ultegra R8000 hydraulic disc brake groupset. From the superb stiffness to weight of the chainset, to the ultra reliable hydraulic disc brakes, and the slick shifting, this groupset really ticks all the boxes.
The CRS Di2 is paired with Reynolds AR58/62 DB carbon wheels, featuring wide carbon rims, Sapim spokes and a lifetime Reynolds warranty. The wheels come tubeless ready, and fitted with Schwalbe's Pro ONE Preformance TLE tyres.
- Race-Fit geometry
- SL UD Carbon aero frame and fork with integrated seat clamp
- Full internal cable routing
- Shimano Ultegra R8000 groupset
- Reynolds AR58/62 DB Carbon wheelset
- Prime Primavera Carbon aero handlebar
Features:
EVO Carbon PlatformRace Performance |
Frame MaterialSL UD Carbon |
Wheel Size700c |
Available SizeXS, S, M, L, XL, XXL |
ColourBlue Chameleon |
Weight:Medium: 8.2kg |
£3,099.99
Specifications
 FRAMEZX-1 EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount |
 REAR HUB N/A N/A |
 FORKSZX-1 EVO Carbon SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific |
 SPOKESN/A
N/A |
 CHAINSETShimano Ultegra R8000 FC-R8000, 52/36T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm |
 FRONT TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard |
 BOTTOM BRACKETTRiPEAK 386-24 BB 386EVO for 24mm axle |
REAR TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard |
 FRONT DERAILLEURShimano Ultegra R8000 FD-R8000-F |
 BRAKESShimano Ultegra R8000 Disc ST-R8020, Hydraulic Disc, Flat Mount |
 REAR DERAILLEURShimano Ultegra R8000 RD-R8000-GS, 11 Speed, Long Cage, Shadow |
BRAKE ROTORSShimano RT70 Front:160mm, Rear:140mm |
 FRONT SHIFTERShimano Ultegra R8000 ST-R8020 |
US Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm |
|
ST-R8020, 11 Speed |
Bar Bore 31.8mm, XS:100mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm |
 CASSETTESunrace RX1 11-32T |
Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover |
11 Speed |
Anti Slip |
N/A |
CRN-Ti Rail, Pressure Relief Channel |
|
N/A |
+20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm |
|
N/A |
Internal Wedge System |
-

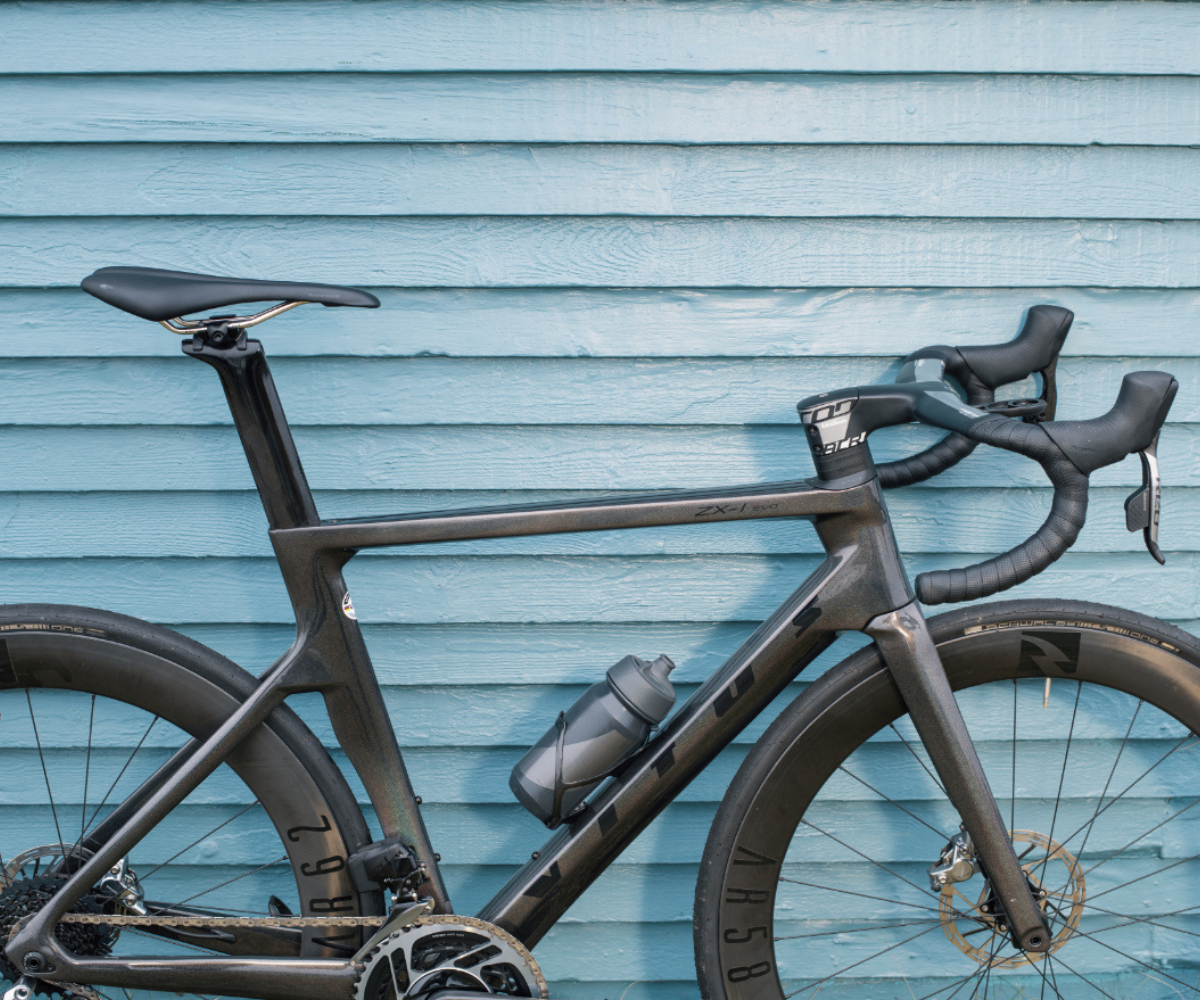

Full Monocoque Frame
The All New ZX-1 EVO features a true monocoque frame, manufactured as a single piece. Comfort and performance go hand-in-hand, while eliminating any joins creates greater strength and result in a light weight, eye catching frame. Less aerodynamic drag, for ultimate speed when out on the open road.
-

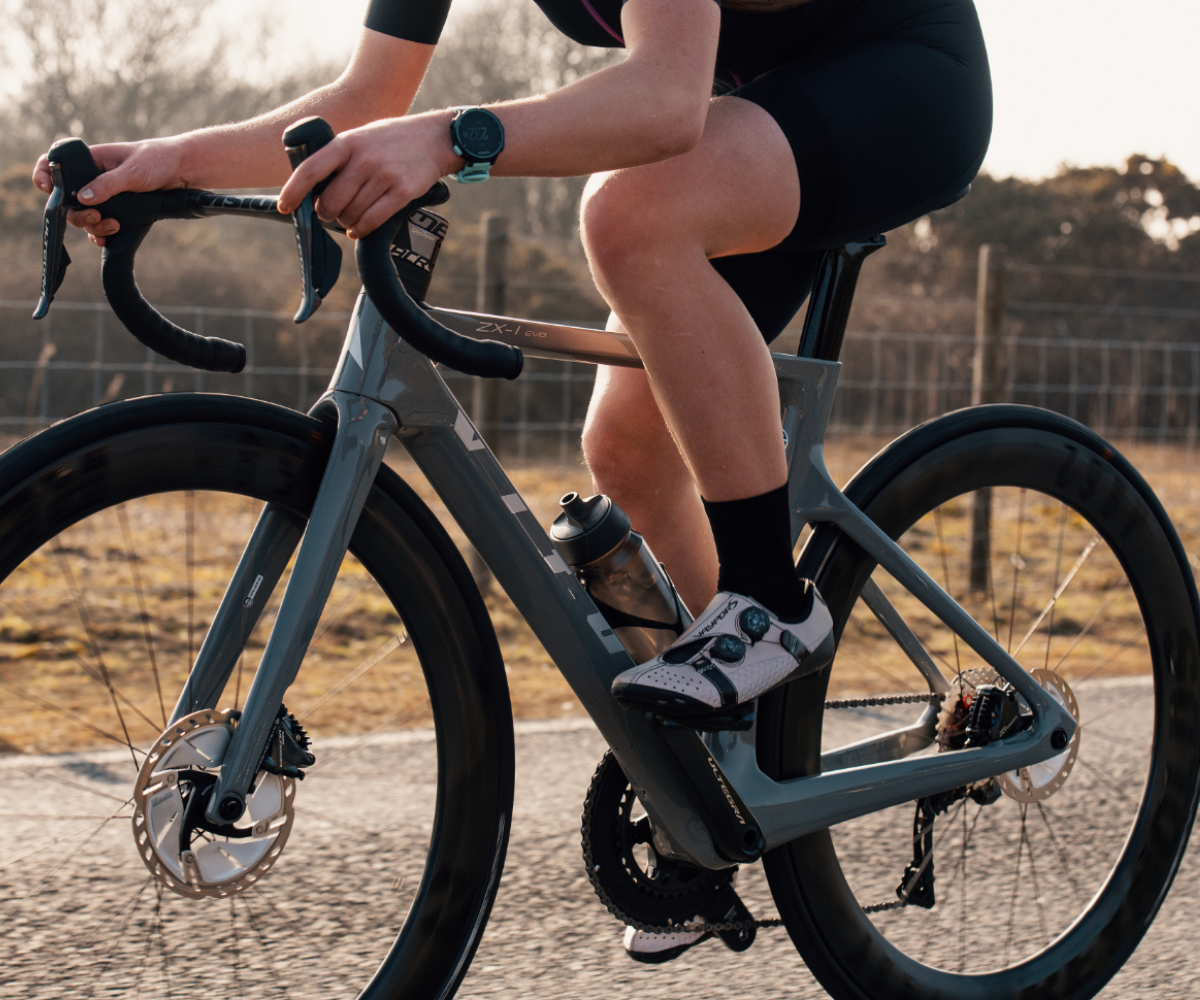

Race Fit Geometry
Race-Fit geometry is reserved for Vitus' performance led race bikes. The aim is to put the rider in the most advantageous position possible, maximising power output and aerodynamic positioning, whilst maintaining comfort.
-

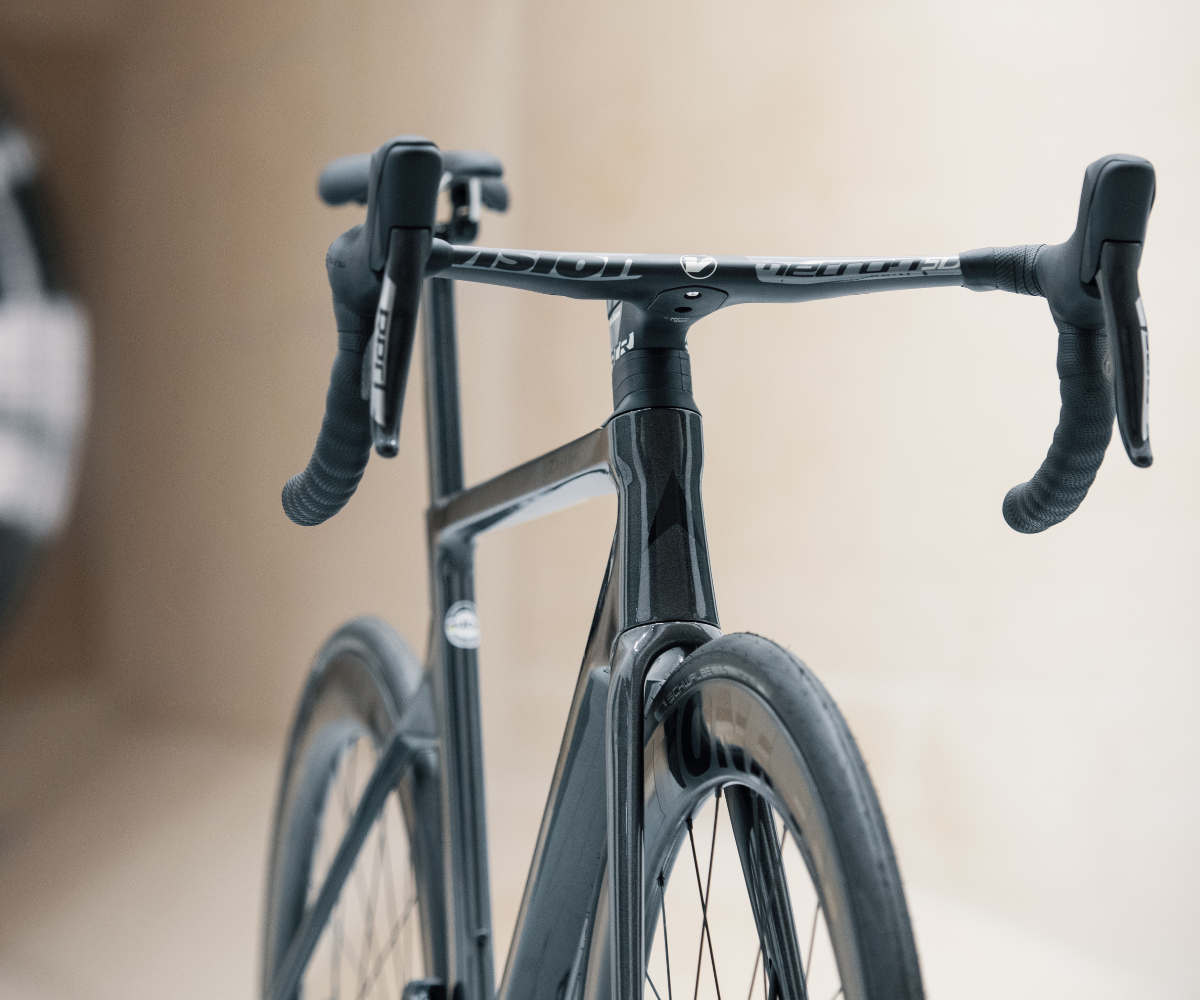

Dual Fork Design
We have introduced frame size specific fork geometry maintaining fit and handling characteristics across the full size curve. By adjusting the rake on the smaller sizes this ensures handling isn't compromised, whilst at the same time giving riders the same toe overlap versus the bigger frame sizes.
-
Tyre clearance
Performance shouldn't come about at the expense of practicality, that's why the ZX-1 EVO brings 700c x 30 tyre clearance across all sizes. For added comfort and control, without compromising on speed.
Geometry & Sizing
| Model / Size | XS | S | M | L | XL | XXL |
| (A) Seat Tube - CT | 470 | 490 | 510 | 530 | 550 | 570 |
| (B) Seat Tube - CC | 450 | 470 | 490 | 510 | 530 | 550 |
| (C) Virtual TT | 520 | 537 | 551 | 566 | 581 | 592 |
| (D) Front Centre | 579 | 590 | 591 | 599.9 | 611 | 623 |
| (E) Wheelbase | 979 | 990 | 991 | 1000.4 | 1012 | 1024 |
| (F) Headtube | 89.5 | 112.3 | 129.6 | 147.8 | 164.5 | 181 |
| (G) Fork Rake | 51 | 51 | 45 | 45 | 45 | 45 |
| (H) Fork Length | 370 | 370 | 370 | 370 | 370 | 370 |
| (I) HT Angle | 70.9 | 71.6 | 72.4 | 72.9 | 73.2 | 73.5 |
| (J) ST Angle | 73.6 | 73.5 | 73.4 | 73.3 | 73.2 | 73.5 |
| (K) Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
| (L) BB Drop | 70 | 69 | 69 | 68 | 68 | 68 |
| Crank length | N/A | N/A | N/A | N/A | N/A | N/A |
| Max Tyre Size | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c |
| (M) Stack | 500 | 522 | 543 | 562 | 578 | 595 |
| (N) Reach | 372 | 381 | 387 | 396 | 406 | 416 |
| Stand Over Height | 752.95 | 774.37 | 794.28 | 815.7 | 831.65 | 850.13 |
| Stem length | N/A | N/A | N/A | N/A | N/A | N/A |
| Handlebar Width | N/A | N/A | N/A | N/A | N/A | N/A |
| Height | 160 - 165 | 165 - 170 | 170 - 177 | 176 - 186 | 186 - 193 | 193 - 200 |
| Inside Leg | 68 - 74 | 74 - 76 | 76 - 79 | 79 - 84 | 84 - 87 | 87 - 93 |
| Bottom Bracket | N/A | N/A | N/A | N/A | N/A | N/A |
| Headset | N/A | N/A | N/A | N/A | N/A | N/A |
| Seat Post | N/A | N/A | N/A | N/A | N/A | N/A |
