Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)

Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021) - £3,699.99

Our all new high performance light weight race bike

An evolution. The new Vitus Vitesse EVO features a ground up rethink on what's required from an elite level lightweight race bike. Refined Race-Fit geometry including a longer top tube, lower front end and shorter chain stays gives the perfect balance of fit and control, whatever the race demands. A refined carbon layup result in Vitus' lightest and stiffest road frameset ever - 10% lighter and 34% stiffer than it's predecessor. Build in the increased tyre clearances and modern look, and this bike just wants to be ridden hard.

Featuring Shimano's Ultegra R8000 Di2 hydraulic disc groupset. The Vitesse CRS maintains it's sleek looks with a bar-end junction and changing port, minimising any external cables and is fitted with a seatpost mounted internal battery. Shimano's accurate shifting performance is combined with relable stopping power from the hydraulic braking system, resulting in a superb all round package.

The CRS Di2 is paired with Reynolds AR29 DB carbon wheels, featuring wide carbon rims, Sapim spokes and a lifetime Reynolds warranty. The wheels come tubeless ready, and fitted with Schwalbe's Pro ONE Performance TLE tyres. A set of Prime Primavera X-Light carbon handlebars and Doyenne Lightweight stem finish the package.

  • Race-Fit geometry
  • SL UD Carbon frame and fork with integrated seat clamp
  • Shimano Ultegra R8000 Di2 groupset
  • Reynolds AR29 DB Carbon wheelset
  • Schwalbe ONE Performance 700c x 25 tyres
  • Prime lightweight finishing kit

Features:

EVO Carbon Platform

Pro Level Race Ready Performance

Frame Material

SL UD Carbon

Wheel Size

700c

Available Size

XS, S, M, L, XL, XXL

Colour

Nardo Grey

Weight:

Medium: 7.5 kg

£3,699.99

Shop with Preferred Partner
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)
Vitus Vitesse EVO CRS Di2 Road Bike Ultegra (2021)

Specifications

FRAMEVitesse EVO Carbon

SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount

REAR HUB Reynolds

142 x 12mm Rear, Centre Lock, XD-R Freehub

FORKSVitesse EVO Carbon

SL UD Carbon, UCI Approved, Tpered Steerer, 100 x 12mm, Flat Mount, Size Specific

SPOKESReynolds

N/A

CHAINSETShimano Ultegra R8000

FC-R8000, 52/36T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm

FRONT TYRESchwalbe ONE Performance

700c x 25, Tubeless Ready TLE, Race Guard

BOTTOM BRACKETTRiPEAK 386-24

BB 386EVO for 24mm axle

REAR TYRESchwalbe ONE Performance

700c x 25, Tubeless Ready TLE, Race Guard

FRONT DERAILLEURShimano Ultegra R8000

FD-R8050-F

BRAKESShimano Ultegra R8000 Disc

ST-R8070, Hydraulic Disc, Flat Mount

REAR DERAILLEURShimano Ultegra R8000

RD-R8050-GS, 11 Speed, Long Cage, Shadow

BRAKE ROTORSShimano RT800

Front:160mm, Rear:140mm

FRONT SHIFTERShimano Ultegra R8000

ST-R8070

HANDLEBARSPrime Primavera X-Light Carbon

US Carbon, 75mm Reach, 125mm Drop, XS:380mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm

REAR SHIFTERShimano Ultegra R8000

ST-R8070, 11 Speed

STEMPrime Doyenne Lightweight Aluminium

Bar Bore 31.8mm, +/- 5 degrees, XS:90mm S:100mm M:110mm L:110mm XL:120mm

CASSETTESunrace RX1

11-32T

HEADSETACROS Aix-Low R3

Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

CHAINKMC X11

11 Speed

GRIPSVITUS SuperGrip

Anti Slip

FRONT RIMReynolds AR 29

Tubeless Ready, 24 Hole

SADDLEVITUS Race Performance

CRN-Ti Rail, Pressure Relief Channel

REAR RIMReynolds AR 29

Tubeless Ready, 24 Hole

SEATPOSTPrime Primavera Carbon

27.2mm, 10mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm

FRONT HUBReynolds

100 x 12mm Front, Centre Lock

SEATCLAMPVitesse EVO Integrated

Internal Wedge System

  • ONE PIECE MONOCOQUE FRAME

    A true one piece monocoque frame manufactured as a single piece of super light UD carbon. No joins, so greater strength and lighter weight.

  • RACE FIT GEOMETRY

    Race-Fit geometry is reserved for Vitus' performance led race bikes. The aim is to put the rider in the most advantageous posistion possible, maximising power output and aerodymaic positioning, whilst maintaining comfort.

  • DUAL FORK DESIGN

    Frame size specific fork geometry maintaining fit and handling characteristics across the full size curve

  • IMPROVED TYRE CLEARANCE

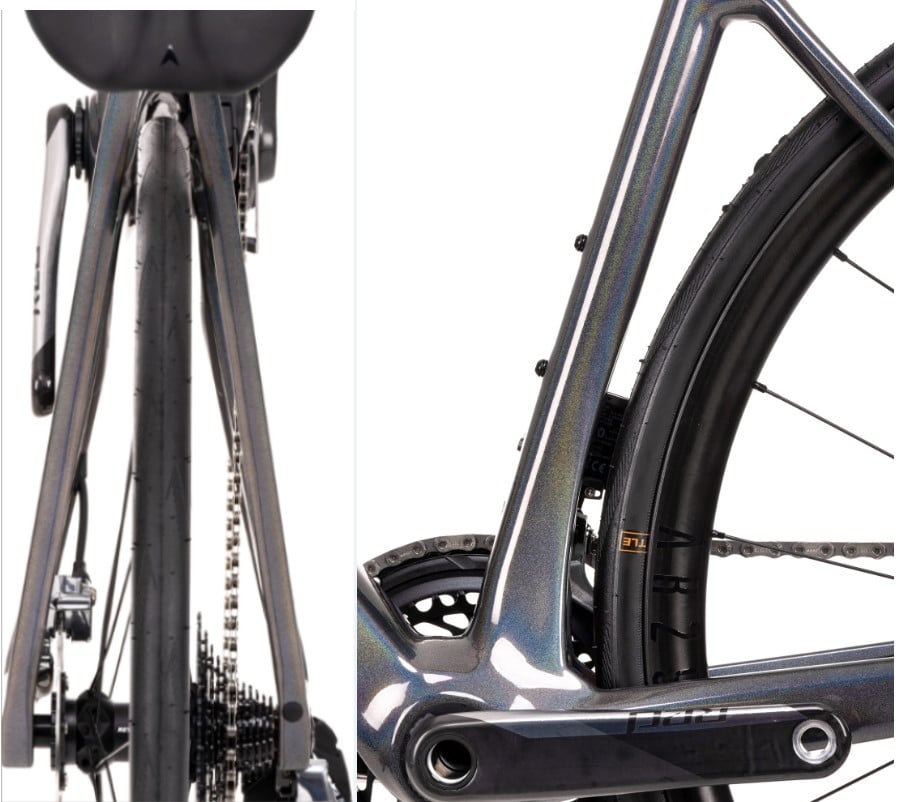

    The new Vitesse EVO frame now has 30c tyre clearance across all frame sizes and even up to 32c depending on the rim/tyre combination.

Geometry & Sizing

Measurement instructions for Vitus Sommet range



Model / Size XS S M L XL XXL
(A) Seat Tube - CT 470 490 510 530 550 570
(B) Seat Tube - CC 450 470 490 510 530 550
(C) Virtual TT 523.9 537.1 550.9 565.6 577.7 587.7
(D) Front Centre 583 592 591 599.9 608 618.2
(E) Wheelbase 983 992 991 1000.4 1008.5 1018.8
(F) Headtube 104.5 127.3 145 162.7 179.5 196.1
(G) Fork Rake 51 51 45 45 45 45
(H) Fork Length 370 370 370 370 370 370
(I) HT Angle 70.9 71.6 72.4 72.9 73.2 73.5
(J) ST Angle 73.6 73.5 73.4 73.3 73.2 73.5
(K) Chainstay 410 410 410 410 410 410
(L) BB Drop 70 69 69 68 68 68
Crank length 165 170 172.5 172.5 175 175
Max Tyre Size 700 x 30c 700 x 30c 700 x 30c 700 x 30c 700 x 30c 700 x 30c
(M) Stack  502.9 524 547 565 582 599
(N) Reach 375.9 381 387 396 402 410
Stand Over Height 754.39 775.37 796.27 815.7 833.64 852.12
Stem length 90 100 110 110 120 120
Handlebar Width 380 400 420 420 440 440
Height  160 - 165 165 - 170 170 - 177 176 - 186 186 - 193 193 - 200
Inside Leg 68 - 74 74 - 76 76 - 79 79 - 84 84 - 87 87 - 93
Bottom Bracket BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
BB386 EVO
46mm ID x 86mm W
Headset Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Tapered 1 1/8" > 1 1/2"
Upper: IS41.8/28.6
Lower: IS52/40
Seat Post 27.2 x 300mm 27.2 x 300mm 27.2 x 350mm 27.2 x 350mm 27.2 x 400mm 27.2 x 400mm

Help

  • FAQs
  • Tech Docs
  • What are the Torque settings on the Vitesse EVO?
  • You can find the tech documents for our Vitus Vitesse EVO here: Vitesse EVO Tech Documents
  • What gear hanger do I need for my Vitesse EVO?
  • You require Vitus Hanger #22 you can buy this from one of our retail partners below;
    Wiggle: Vitus Hanger 22
    Chain Reaction Cycles: Vitus Hanger 22
  • Where can I buy Vitus Bikes?
  • You can buy Vitus bikes directly through our exclusive retailers Wiggle and Chain Reaction Cycles
  • Do your bikes come with Warranty?
  • We offer a 5-year warranty on all our frames. On top of that we also offer an extended 2-year warranty on all components excluding wear and tear items such as bearings, brake pads, chains & cassettes etc. Our Warranty policy applies to the original owner and processed by our exclusive retail partners.To see their warranty process check: CRC & Wiggle
