Our all new high performance light weight race bike
An evolution. The new Vitus Vitesse EVO features a ground up rethink on what's required from an elite level lightweight race bike. Refined Race-Fit geometry including a longer top tube, lower front end and shorter chain stays gives the perfect balance of fit and control, whatever the race demands. A refined carbon layup result in Vitus' lightest and stiffest road frameset ever - 10% lighter and 34% stiffer than it's predecessor. Build in the increased tyre clearances and modern look, and this bike just wants to be ridden hard.
Fitted with SRAM's new FORCE eTap AXS HRD with wireless electronic shifting. This 12 speed groupset offers modern gearing ratio's, advanced chain management and easy personalisation via the app. Top technology in an efficent package.
The CRS eTap AXS is paired with Reynolds AR29 DB carbon wheels, featuring wide carbon rims, Sapim spokes and a lifetime Reynolds warranty. The wheels come tubeless ready, and fitted with Schwalbe's Pro ONE Performance TLE tyres. A set of Prime Primavera X-Light carbon handlebars and Doyenne Lightweight stem finish the package.
- Race-Fit geometry
- SL UD Carbon frame and fork with integrated seat clamp
- SRAM FORCE eTap AXS HRD groupset
- Reynolds AR29 DB Carbon wheelset
- Schwalbe ONE Performance 700c x 25 tyres
- Prime lightweight finishing kit
Features:
EVO Carbon PlatformPro Level Race Ready Performance |
Frame MaterialSL UD Carbon |
Wheel Size700c |
Available SizeXS, S, M, L, XL, XXL |
ColourCandy Red |
Weight:Medium: 7.6 kg |
£3,749.99
Specifications
FRAMEVitesse EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount |
REAR HUB Reynolds 142 x 12mm Rear, Centre Lock, XD-R Freehub |
FORKSVitesse EVO Carbon SL UD Carbon, UCI Approved, Tpered Steerer, 100 x 12mm, Flat Mount, Size Specific |
SPOKESReynolds
N/A |
CHAINSETSRAM FORCE D1 DUB 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm |
FRONT TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard |
BOTTOM BRACKETSRAM DUB 386 DUB For BB386EVO |
REAR TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard |
FRONT DERAILLEURSRAM FORCE eTap AXS N/A |
BRAKESSRAM FORCE eTap AXS D1 Disc Hydraulic Disc, Flat Mount |
REAR DERAILLEURSRAM FORCE eTap AXS 12 Speed, Short Cage, |
BRAKE ROTORSSRAM Paceline Front:160mm, Rear:140mm |
FRONT SHIFTERSRAM FORCE eTap AXS N/A |
HANDLEBARSPrime Primavera X-Light Carbon
US Carbon, 75mm Reach, 125mm Drop, XS:380mm S:400mm M:420mm L:420mm XL:440mm XXL:440mm |
REAR SHIFTERSRAM FORCE eTap AXS
12 Speed |
STEMPrime Doyenne Lightweight Aluminium
Bar Bore 31.8mm, +/- 5 degrees, XS:90mm S:100mm M:110mm L:110mm XL:120mm |
CASSETTESRAM XG 1270 D1 10-33T |
HEADSETACROS Aix-Low R3
Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40 |
CHAINSRAM FORCE D1
12 Speed |
GRIPSVITUS SuperGrip
Anti Slip |
FRONT RIMReynolds AR 29
Tubeless Ready, 24 Hole |
SADDLEVITUS Race Performance
CRN-Ti Rail, Pressure Relief Channel |
REAR RIMReynolds AR 29
Tubeless Ready, 24 Hole |
SEATPOSTPrime Primavera Carbon
27.2mm, 10mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm |
FRONT HUBReynolds
100 x 12mm Front, Centre Lock |
SEATCLAMPVitesse EVO Integrated
Internal Wedge System |
-
ONE PIECE MONOCOQUE FRAME
A true one piece monocoque frame manufactured as a single piece of super light UD carbon. No joins, so greater strength and lighter weight.
-
RACE FIT GEOMETRY
Race-Fit geometry is reserved for Vitus' performance led race bikes. The aim is to put the rider in the most advantageous posistion possible, maximising power output and aerodymaic positioning, whilst maintaining comfort.
-
DUAL FORK DESIGN
Frame size specific fork geometry maintaining fit and handling characteristics across the full size curve
-

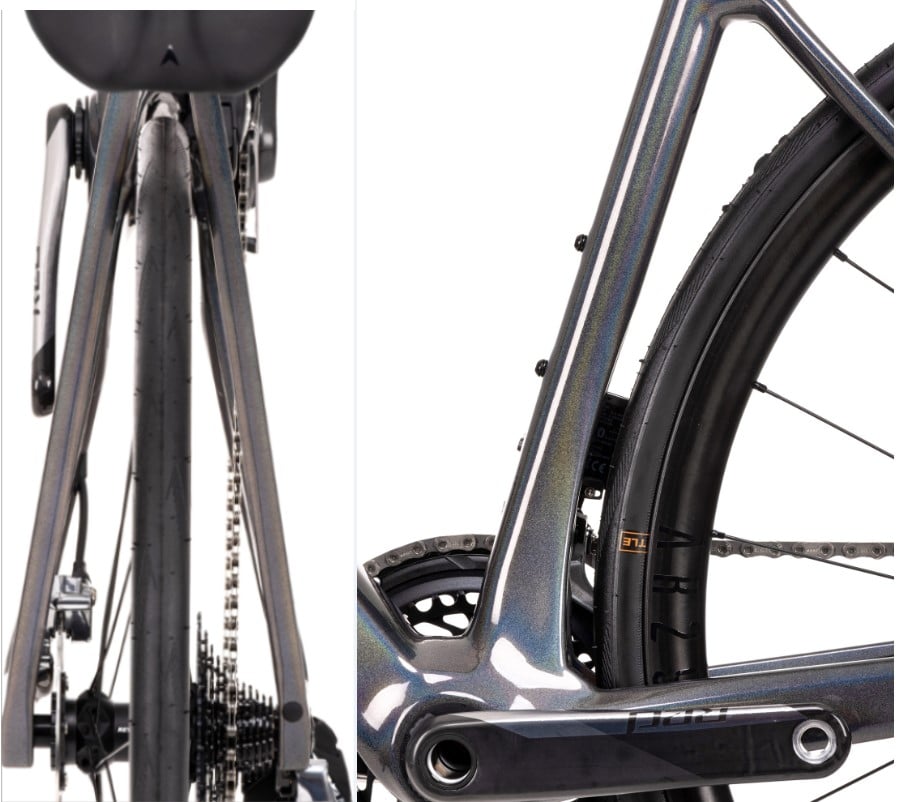

IMPROVED TYRE CLEARANCE
The new Vitesse EVO frame now has 30c tyre clearance across all frame sizes and even up to 32c depending on the rim/tyre combination.
Geometry & Sizing
Model / Size | XS | S | M | L | XL | XXL |
(A) Seat Tube - CT | 470 | 490 | 510 | 530 | 550 | 570 |
(B) Seat Tube - CC | 450 | 470 | 490 | 510 | 530 | 550 |
(C) Virtual TT | 523.9 | 537.1 | 550.9 | 565.6 | 577.7 | 587.7 |
(D) Front Centre | 583 | 592 | 591 | 599.9 | 608 | 618.2 |
(E) Wheelbase | 983 | 992 | 991 | 1000.4 | 1008.5 | 1018.8 |
(F) Headtube | 104.5 | 127.3 | 145 | 162.7 | 179.5 | 196.1 |
(G) Fork Rake | 51 | 51 | 45 | 45 | 45 | 45 |
(H) Fork Length | 370 | 370 | 370 | 370 | 370 | 370 |
(I) HT Angle | 70.9 | 71.6 | 72.4 | 72.9 | 73.2 | 73.5 |
(J) ST Angle | 73.6 | 73.5 | 73.4 | 73.3 | 73.2 | 73.5 |
(K) Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
(L) BB Drop | 70 | 69 | 69 | 68 | 68 | 68 |
Crank length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
Max Tyre Size | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c | 700 x 30c |
(M) Stack | 502.9 | 524 | 547 | 565 | 582 | 599 |
(N) Reach | 375.9 | 381 | 387 | 396 | 402 | 410 |
Stand Over Height | 754.39 | 775.37 | 796.27 | 815.7 | 833.64 | 852.12 |
Stem length | 90 | 100 | 110 | 110 | 120 | 120 |
Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
Height | 160 - 165 | 165 - 170 | 170 - 177 | 176 - 186 | 186 - 193 | 193 - 200 |
Inside Leg | 68 - 74 | 74 - 76 | 76 - 79 | 79 - 84 | 84 - 87 | 87 - 93 |
Bottom Bracket | BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
BB386 EVO 46mm ID x 86mm W |
Headset | Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Tapered 1 1/8" > 1 1/2" Upper: IS41.8/28.6 Lower: IS52/40 |
Seat Post | 27.2 x 300mm | 27.2 x 300mm | 27.2 x 350mm | 27.2 x 350mm | 27.2 x 400mm | 27.2 x 400mm |
Help
- FAQs
- Tech Docs
- What are the Torque settings on the Vitesse EVO?
- You can find the tech documents for our Vitus Vitesse EVO here: Vitesse EVO Tech Documents
- What gear hanger do I need for my Vitesse EVO?
- You require Vitus Hanger #22 you can buy this from one of our retail partners below;
Wiggle: Vitus Hanger 22
Chain Reaction Cycles: Vitus Hanger 22 - Where can I buy Vitus Bikes?
- You can buy Vitus bikes directly through our exclusive retailers Wiggle and Chain Reaction Cycles
- Do your bikes come with Warranty?
- We offer a 5-year warranty on all our frames. On top of that we also offer an extended 2-year warranty on all components excluding wear and tear items such as bearings, brake pads, chains & cassettes etc. Our Warranty policy applies to the original owner and processed by our exclusive retail partners.To see their warranty process check: CRC & Wiggle
